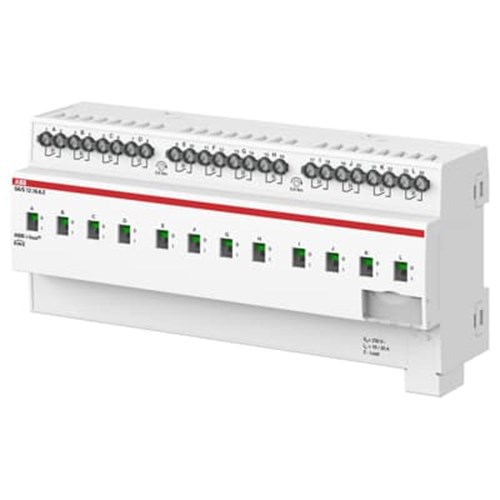

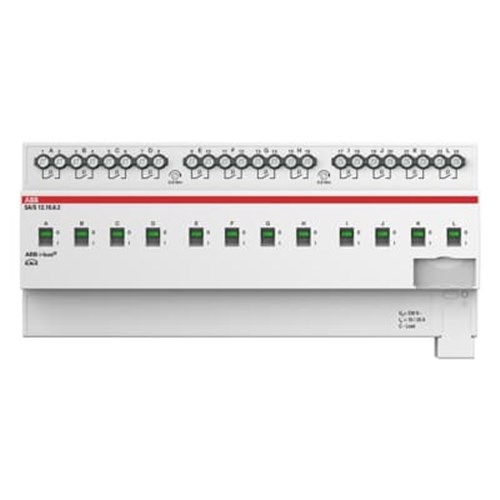

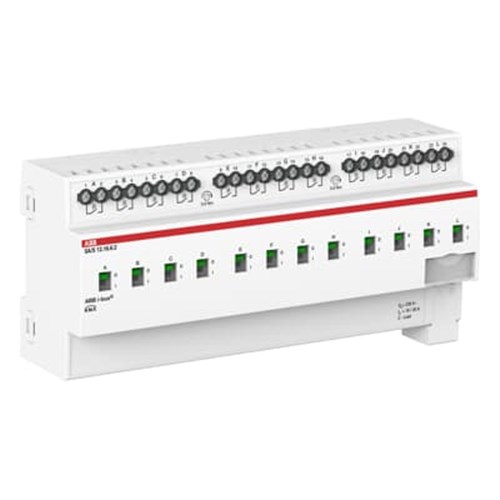

ABB 12CH 16A C-LOAD ACTUATOR ENERGY FUNCTION, 12MRDC SA/S12.16.6.2

Product Code: AB-SAS12.16.6.2

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX Actuators

SA/S12.16.6.2

General Information

  • Extended Product Type: SA/S12.16.6.2
  • Product ID: 2CDG110272R0011
  • EAN: 4016779066532
  • Catalog Description: SA/S12.16.6.2 Switch Actuator, 12-fold, 16 A, C-Load, Energy Function, MDRC
  • Long Description: The switch actuator uses potential free contacts to switch 12 independent electrical loads via ABB i-bus® KNX. The device has integrated energy functions. This includes independent load current measurement in each output and easy to use calculation of power and energy consumption for each output or groups of outputs. Via an integrated load shedding object an integration in a load control system can be easily realized. The device features a manual operation and displaying of the switching state of the outputs. The 16/20 A, 16 A-AC3 (C-load) device is especially suited for loads with high surge currents e.g. LED or fluorescent lighting (AX) acc. EN60669.

  • Installation
    • Mounting Type: DIN-Rail
  • Environmental
    • Ambient Air Temperature: Operation -5 ... +45 °C
    • Degree of Protection: IP20
  • Technical
    • Contact Position Indication: ON / OFF
    • Number of Outputs: 12
    • Number of LEDs: 1
    • Maximum Number of Switching Outputs: 12
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: Yes
    • Suitable for C-Load: Yes
    • Number of Batteries: 0
  • Electrical
    • Voltage Range: 230 V AC
    • Auxiliary Voltage AC/DC: KNX
    • Output Voltage (Uout): 230 V AC
    • Rated Current (In): 20 A
    • Maximum Switching Current: 20 A
    • Maximum Switching Power: 3680 W
    • Load Type: Ohmic, capacitive and inductive loads
    • Power Loss: 12 W
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 12.0
    • Product Net Width: 210 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 63.5 mm
    • Product Net Weight: 0.845 kg
    • Built-In Depth (t2): 64.5 mm
