CAT6A feedthrough coupler for cable | Neutrik - Amber Tech
Products

Adapters

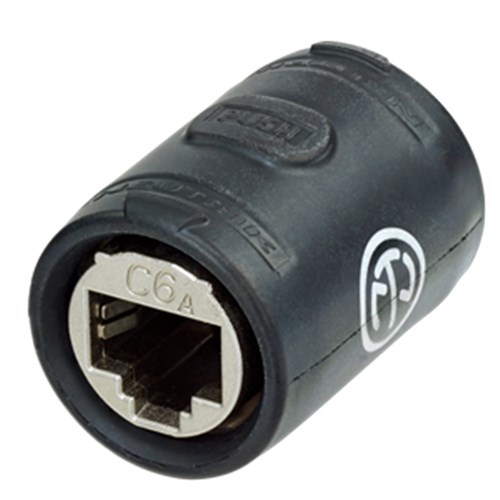

CAT6A feedthrough coupler for cable extensions

Product Code: NU-NE8FFX6-W

Brand
Neutrik
RRP $89.00


Quantity In Cart: 0
Unit of Measure
EACH



Features

Neutrik introduces the latest extension of the CAT6A portfolio - the CAT6A feedthrough coupler for cable extensions.

With this revolutionary new design Neutrik has set a groundbreaking new standard for a ruggedized adapter solution.

The new adapter features the 10 GBit bandwidth as well as ingress protection class IP65.

Technical Specifications
Brands Neutrik
Adapter Type Ethernet

etherCON CAT6A feedthrough coupler for cable extensions.



Features & Benefits

  • Ruggedized coupler with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • IP65 protected when mated with NE8MX6*
  • Accommodates standard RJ45 plug
  • Revolutionary small form factor
  • The adapter offers the million-fold proven robust latch lock system
  • The adapters are problem solvers for various intermating problems for professional and semi-professional applications
Product
Title
NE8FFX6-W
Connection Type
Adapter
Gender
female
Electrical
Contact resistance
< 200 mΩ
Dielectric strength
> 1.5 kVdc
Insulation resistance
> 0.5 GΩ
Rated current per contact
1.5 A
Transmission performance
CAT6A, acc. TIA/EIA rating
Class EA, acc. IEC/ISO/EN rating
Power over Ethernet
PoE+ acc. IEEE 802.3at
Mechanical
Insertion force
≤ 50 N
Withdrawal force
≤ 50 N
Lifetime
> 1000 mating cycles
Wiring
Feedthrough
Locking device
Latch lock
Material
Contact plating
Au
Shell
Rubber (EPDM)
Strain relief
CuZn35Pb2, Tin plated
Environmental
Temperature range
- 30 °C to + 80 °C
Protection class
IP65 (in combination with NE8MX*)
