6061 CORE Omni Submini Mic, Loud SP - Amber Tech
Products

DPA Microphones

This is a Special Order Item

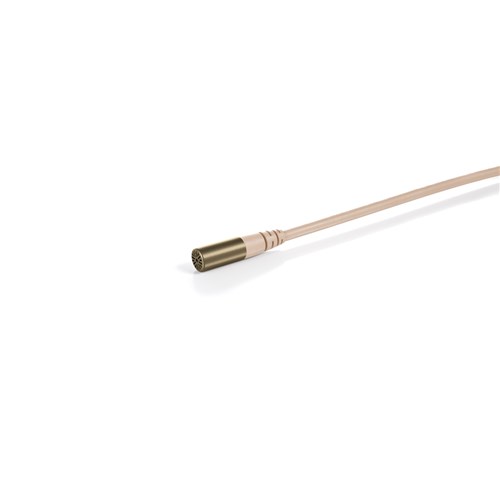

6061 CORE Omni Submini Mic, Loud SPL, Beige, TA4F Mini-XLR

Product Code: DP-6061-OC-U-F10

Brand
DPA Microphones
RRP $1,159.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands DPA Microphones
Microphone Type Lavalier Microphones
Series 6060

6060 Series Subminiature Microphone

  • SOUND PRESSURE LEVEL (SPL): Loud SPL (6061/4061/4661)
  • COLOUR: Beige
  • WIRED OR WIRELESS: TA4F Mini-XLR
  • ACCESSORIES: Microphone Grid for 6060/6061/6066 (DUA9301-B, DUA9301-F, DUA9301-C, DUA9301-W)

A submini unlike any other

  • Amazing 3 mm CORE capsule technology
  • Renowned DPA sound in a 60% smaller package
  • Stainless steel, PVD-coated mic housing
  • Modular adapter system fits most professional wireless systems

6060 CORE Subminiature Lavalier Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger,  award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

Specifications

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
  • Sensitivity, nominal, ±2.4 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
  • Distortion, THD < 1%: 125 dB SPL RMS, 128 dB SPL peak
  • Dynamic range: Typ. 102 dB
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Rated output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
  • Power supply (for full performance):
    • For wireless systems: Min. 5 V - max. 10 V through DPA adapter
    • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Color: Black, beige, brown or white
  • Weight: 8 g (0.29 oz) incl. Cable and MicroDot connector
  • Microphone head size (h x w x d): 3.4 / 14.4 mm (0.13 / 0.57 in)
  • Capsule diameter: 3 mm (0.12 in)
  • Cable length: 1.8 m (5.9 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
