4.5" 2-way Silver outdoor speaker w/bracket IP56 - Gray One Systems

Product Code: OS-104.STH

Brand
One System
$575.00 inc GST
RRP $575.00

Limited Stock
Increase value Decrease value
Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands One Systems
Series Silver Series
Size 4.5"
Speaker Type Outdoor

One Systems 104/STH

The One Systems 104/STH is a universal direct weather loudspeaker system designed for use in general purpose inland environments. The 104/STH utilizes stainless steel for all rigging points that are to be used in conjunction with optional One Systems rigging accessories, such as the PM2/M pole mount system, or PT-10/M pan/tilt bracket. The included U-Bracket and grille are both made from a structural steel coating with a highly durable dual layer zinc rich powder coating.

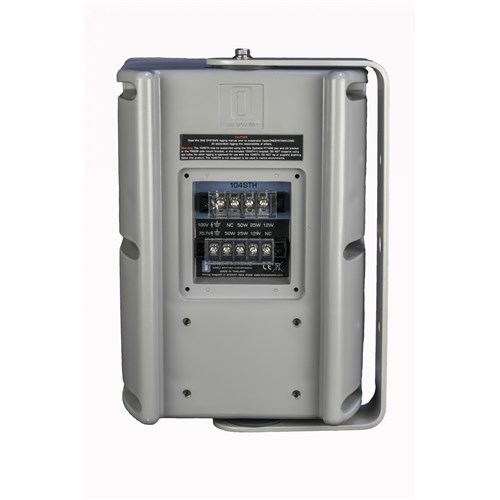

The 104/STH also features a configurable Hi Z or Lo Z mode. The Hi Z mode features a wide bandwidth 50-watt autoformer that presents input taps of 50 Watts, 25 Watts and 12.5 Watts. The Lo Z mode is 8-ohms. The configuration scheme does not utilize any switches that limit system reliability. The Hi Z mode allows for either 70.7Vrms or 100Vrms operation.

The 104/STH is a two-way design featuring a wide coverage pattern of 110 degrees by 80 degrees. This low Q pattern is ideal for short throw applications and near field sound reinforcement applications. The elliptical wave guide provides optimal loading to the high frequency driver. The 4.5- inch nominal diameter, low frequency component features a large ferritemagnet for high sensitivity, and a treated paper cone for superior vocal reinforcement.


Features

  • Stainless steel rigging points
  • Dual layer zinc rich powder coat utilized on grille and included U-Bracket
  • Combined 70.7V/100V/Direct operation
  • No performance degrading passive protection devices
  • 40 Watts continuous power handling in direct (8 ohm) operation
  • Highly suitable for inland direct weather environments
  • Optional PM2/M pole mount system and PT10/M pan/tilt bracket available
  • IEC 529 IP 56 ingress protection

Specifications

  • Frequency Response: 110Hz-20kHz
  • Coverage Pattern: 110 (H) x 80 (V)
  • Crossover Frequency: 1.8kHz
  • System Sensitivity 1w/1m: 87dB
  • Power Handling: 40w
  • Input Impedance (Lo Z): 8
  • Input Taps (Hi Z): 50/25/12.5w
  • Weight: 2.4kg, 5.3 lbs
  • Size (mm): 211.2 x 156.2 x 130.5 (Not including U-Bracket)
  • Size (Inches): 8.3 x 6.15 x 5.1 (Not including U-Bracket)
