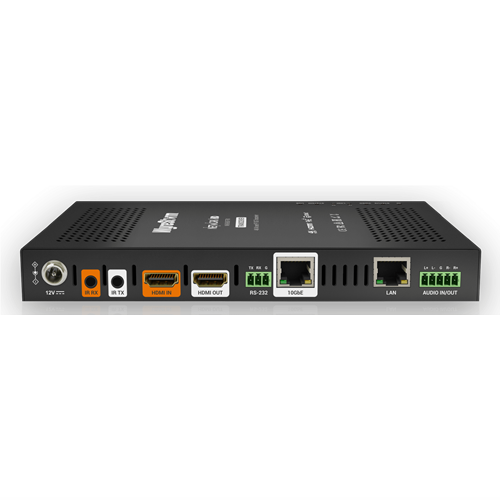

NHD-600-TRX transceiver

Product Code: WY-NHD600TRX

Brand
Wyrestorm
RRP $2,619.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type Extenders
Series NetworkHD
  • Details
  • Downloads
  • Where to Buy
  • Ordering


The NHD-600-TRX is a SDVoE transceiver capable of lossless & latency-free 4K60 over a 10GbE network. The TRX allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. 3 x USB HID ports allow extension for keyboard and mouse applications such as a corporate meeting room or an operating center. A cutting-edge architecture provides an efficient, small footprint and support for PoE+.

  • Supports 4K UHD and DCI resolutions up to 60fps RGB or YUV 4:4:4
  • Supports Dolby Vision, HDR10 and HLG HDR formats and ITU-R BT.2020 and BT.2100 color spaces
  • Capable of high-bitrate multichannel audio passthrough, including Dolby Atmos™ and DTS:X
  • HDCP 2.2 and HDCP 1.x support
  • 802.3at PoE+ compliant
  • 3x USB 1.1 HID ports for extension of keyboard & mouse applications
  • Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
  • Video resolution, framerate and color space conversion using SMPTE/ITU recommended methods
  • Genlock scaler mode for zero end-to-end latency
  • Supports seamless AV source switching via Fast Switch mode
  • Secondary video stream with alternate scaling options can be used for multiview source content
  • Fully featured multiview image compositing includes arbitrary source window placement, resizing, image duplication and image offset functions
  • Video wall processing including display bezel compensation
  • Balanced analog audio port can be configured as an input or output for a discrete audio stream or HDMI de-embedding
  • Bidirectional IP to Infrared / RS-232 functionality via the API or 3rd-party drivers
  • Auxiliary 1GbE channel for network connectivity of attached source devices
  • Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
  • Compatible with NHD-000-RACK4 for easy rack mounting
  • Secure A/V transmissions using AES encryption methods

Specifications

AUDIO AND VIDEO

  1. Inputs/Outputs:
    • 1 x HDMI 2.0 input
    • 1 x HDMI 2.0 output
    • 1 x 5-pin balanced analog audio in/out
    • 1 x 10GbE 8-pin RJ45
  2. Output Video Encoding: SDVoE Pixel Pipeline
  3. Encoding Data Rate:
    • 1080p@60Hz 12bit – 3.4Gbps
    • 4K UHD@30Hz 4:4:4 8bit – 6.6Gbps
    • 4K UHD@60Hz 4:4:4 8bit – 9Gbps (with light compression)
  4. End to End Latency (Max):
    • Genlock Mode: Uncompressed = 30us, Compressed <120us
    • Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps
  5. Video Resolutions (Max):
    • 4096x2160p @ 60Hz 8bit 4:4:4 or RGB
    • 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
    • 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
    • 1920x1080p @60Hz 12bit
  6. Supported Standards:    RGB | DCI
  7. Maximum Pixel Clock:    600 MHz
  8. 3D:    HDMI 1.4b 3D: TnB, SbS, F.P

COMMUNICATION AND CONTROL

  1. HDMI:    HDCP 2.2 & 1.x compliant
  2. Ethernet:    1 x 1GbE LAN 8-pin RJ45
  3. RS-232:    1x 3-pin Phoenix Connector | 2 Way | Broadcast | Routed | API Programmable
  4. Infrared:
    1. 1 x IR TX 3.5mm TS Mono Jack | API Programmable
    2. 1 x IR RX 3.5mm TRS Stereo Jack | API Programmable
  5. USB:
    1. 3 x USB 1.1 Type A
    2. 1 x USB 1.1 Type B Host

POWER

  • Power Supply    12V 2A DC PSU | 802.3at PoE+ compliant
  • Max Power Consumption    Max: 24w
  • Average: 10w

ENVIRONMENTAL

  • Operating Temperature    +32°F ~ +104°F (0°C ~ +45°C) | 10% ~ 90% non-condensing
  • StorageTemperature    -4°F to ~ 140°F (-20°C ~ +70°C) | 10% ~ 90% non-condensing
  • Maximum BTU    34 BTU/hr
  • DIMENSIONS & WEIGHT
  • Length x Width x Height    140mm x 215mm x 25mm
  • Weight    1.75lbs
