  • 4K HDR 4 X 2 USB-C matrix with MST. 60W charging . USB3. passthrough 1Gbe .GPIO.

4K HDR 4 X 2 USB-C matrix with MST. 60W charging . USB3. passthrough 1Gbe .GPIO.

Product Code: WY-MX0402MST

Brand
Wyrestorm
$2,859.00 inc GST
RRP $2,859.00

Limited Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Input/output type USB
Product type AV matrixes
  • Details
  • Downloads
  • Where to Buy
  • Ordering

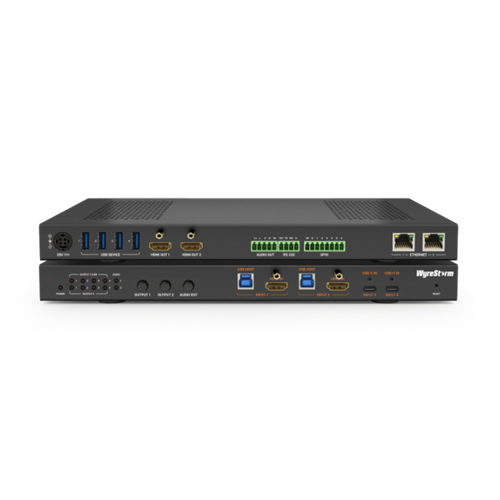

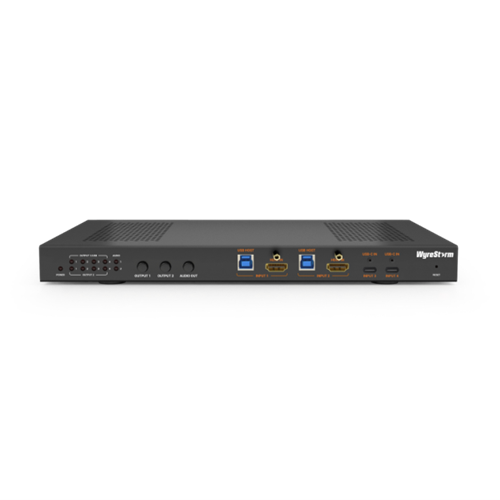

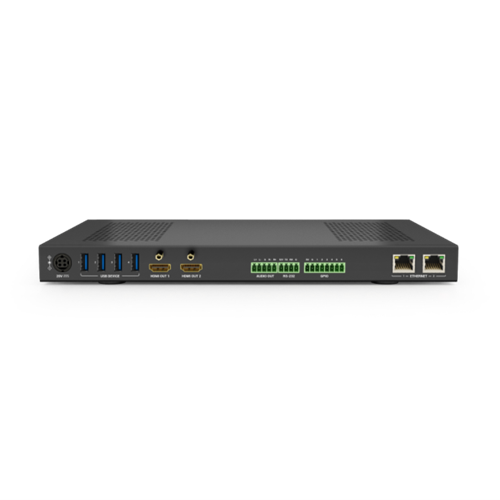

4×2 Multi-Input Conference Room Switcher with Advanced USB-C Integration


SKU: MX-0402-MST

The MX-0402-MST Conference Presentation Switcher is the ultimate solution for modern conference rooms. Designed to simplify and enhance your presentation experience, this 4×2 switcher integrates video, audio, USB, control, and Ethernet functionalities. With dual USB-C and dual HDMI inputs, automatic switching capabilities, and advanced USB 3.2 ports, the MX-0402-MST ensures seamless connectivity and control for all your conference needs. Experience crystal-clear 4K video, high-speed data transfer, and efficient power delivery with this state-of-the-art presentation switcher.

COMPREHENSIVE INPUT OPTIONS
The MX-0402-MST Conference Presentation Switcher features dual USB-C and dual HDMI inputs, allowing for versatile connectivity. Each input port supports cable lock connections, ensuring secure and stable connections for your presentation devices.

ADVANCED USB-C INTEGRATION
Experience the full potential of USB-C with support for 4K video, USB 3.2 data transfer, and 60W charging. The MX-0402-MST also supports dual video output via a single USB-C cable, providing exceptional flexibility for multi-screen presentations.

FLEXIBLE AND AUTOMATIC SWITCHING
The switcher offers multiple switching methods, including automatic switching, priority switching, and independent USB and video switching. This ensures that your presentation flows smoothly, with minimal manual intervention required.

ROBUST CONNECTIVITY AND CONTROL
Equipped with four USB 3.2 device ports, one balanced audio de-embedding port, RS232, and GPIO ports, the MX-0402-MST allows for seamless integration with various conference equipment. Additionally, the dual RJ-45 ports support Ethernet switching and VLAN settings, providing reliable network connectivity.

Additional Features

  • Supports up to 4K@60Hz 4:4:4 video resolution on all HDMI inputs and outputs, ensuring superior visual quality for your presentations.
  • Supports a wide range of audio formats, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS, delivering an immersive audio experience.
  • Offers multiple control methods, including RS-232, Telnet, and a user-friendly Web UI, allowing for convenient management and configuration of the switcher.
  • Features automatic switching modes such as last-in-first-out and priority settings, ensuring the most relevant input source is always displayed.
  • Supports USB-C dual video mode, allowing one USB-C connection to transmit two independent video streams to two HDMI outputs.
  • Provides the ability to switch USB and video signals independently, offering greater flexibility in managing connected devices.
  • Includes a balanced audio de-embedding port for connecting to audio equipment, ensuring high-quality audio output.
  • All ports support cable lock connections to ensure stable and secure connections for all devices during presentations.
  • Dual RJ-45 ports support Ethernet switching and VLAN settings, providing reliable network connectivity and enhanced security.
  • Supports firmware updates via the Web UI and offers multiple methods to restore factory settings, ensuring the device stays up-to-date and easy to troubleshoot.
  • USB-C ports support 60W Power Delivery, allowing for efficient charging of connected devices.

Specifications

  • AUDIO & VIDEO
    • Inputs:
      • 2x HDMI In: 19-pin Type A
      • 2x USB-C
    • Outputs
      • 2x HDMI Out: 19-pin Type A
      • 1x Analog Audio Out (5-pin Phoenix Male Connector)
    • Output Video Encoding: HDMI 18Gbps
    • Audio Formats
      • USB-C IN/HDMI IN/ HDMI OUT: Up to 7.1ch, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos,
      • DTS 5.1, DTS-HD Master Audio and DTS:X.
      • Analog Audio de-embedding: 2ch Analog/PCM
    • Video Resolutions (Max): 3840x2160p @60Hz 4:4:4 8bit
    • Data Rate:
      • USB-C IN: 5Gbit/s (per lane).
      • HDMI: 18Gbps.
      • USB 3.2: 5Gbit/s.
    • HDR Format: All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision
    • Supported Standards: DCI | RGB
    • Maximum Pixel Clock: 600MHz
  • POWER
    • Power Supply: 20V
    • Max Power Consumption:Up to 200W

In the Box

  • 1x MX-0402-MST
  • 1x Power Adapter 20V/10A DC
  • 2x USB-C 2m cables
  • 2x USB 3.0 A to B 1.8m cables
  • 4x Mounting Brackets
  • 4x Bracket Screws
  • 1x 5-pin Phoenix Connector
  • 1x 3-pin Phoenix Connector
  • 1x 8-pin Phoenix Connector
  • 1x Quickstart Guide
