Products

AV switching and distribution

This is a Special Order Item

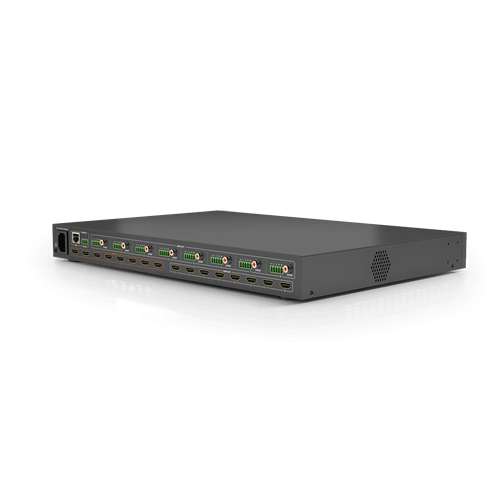

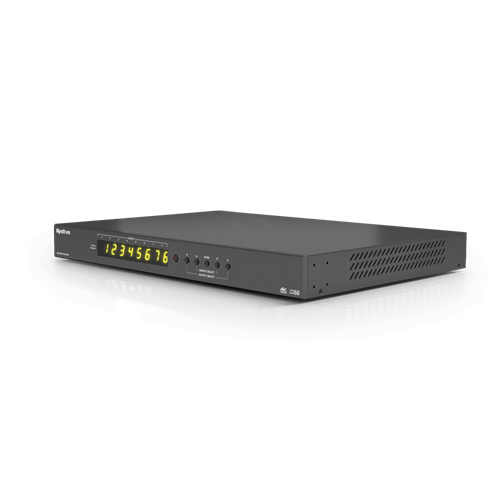

4K Hdmi 8X8 Matrix MX0808H2A Wyrestorm

Product Code: WY-MX0808H2AMK2

Brand
Wyrestorm
RRP $3,869.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type AV matrixes
  • Details
  • Downloads
  • Where to Buy
  • Ordering

4K60 8×8 HDMI Matrix
SKU: MX-0808-H2A-MK2

The MX-0808-H2A-MK2 is a welcome refresh to the powerful line of H2A pure HDMI switchers. The MK2 is familiar on the surface but has a host of improvements and added features. To start, the HDMI outputs now feature 4K > 1080p downscalers promoting easier integration of mixed resolution displays into a single system. The HDMI outputs also now support Audio Return Channel from smart TVs to bring audio from apps like Netflix, Prime Video, Hulu, etc.…to an external audio system. Speaking of audio, the analog audio outputs have been updated to balanced connections to ensure there is no loss in fidelity or interference.

SCALERS
Each of the 8 outputs on the MK2 feature down scalers, allowing support for mixed resolution distribution of HDMI content to 4K and 1080p display simultaneously.

AUDIO DE-EMBED
Featuring balanced analog and a digital S/PDIF, easily de-embed audio from either the HDMI inputs or ARC to a secondary audio distribution system without the need for external adapters or converters.

ARC SUPPORT
All 8 HDMI outputs support Audio Return Channel from smart TVs apps like Netflix, Prime Video, Hulu, etc.….The ARC audio can then be sent through either the digital S/PDIF or balanced analog outputs to an AVR or stereo amp.

2160P 4:4:4
As a standard requirement with the latest WyreStorm products, the MK2 supports the latest video formats including 4K HDR and Dolby Vision content all in uncompressed HDMI glory.

Features

  • Uncompressed HDMI signal distribution supporting full 18Gbps bandwidth and 4K/60 4:4:4 video content
  • Pair with WyreStorm HAOC cables to send uncompressed HDMI video up to 50 meters.
  • Compatible with latest HDR video standards including HDR10, HDR10+ Dolby Vision and HLG
  • Balanced analog and digital S/PDIF audio de-embed for distributing audio to an amplifier or DSP
  • Each HDMI output supports 4K to 1080p downscaling to support mixed resolution systems
  • Output downscaling controlled intuitive web UI or API commands
  • Automatic or manual CEC power triggering of displays through HDMI outputs via API. Allows custom CEC commands to expand compatibility with displays.
  • Audio Return Channel supported on all 8 outputs allowing up to 5.1 audio from smart TV apps to be distributed to external audio systems such as an AVR or stereo amplifier.
  • Supports AV Mute for enabling disabling HDMI outputs per zone
  • API triggered standby mode puts unit into low power state during downtime
  • EDID Management through API or front panel buttons
  • 1U 19” chassis for convenient installation into standard equipment racks

Specifications

AUDIO AND VIDEO

  • Inputs:
    • 8x HDMI In
  • Outputs:
    • 8x HDMI Out
    • 8x 5-pin Balanced Analog Audio
    • 8x S/PDIF Digital Audio
  • Audio Formats:
    • 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
  • Video Resolutions (Max) Video Resolutions HDMI
    1920x1080p @60Hz 16bit 7m/23ft
    3840x2160p @60Hz 10bit 4:2:2 HDR10/10+ 5m/16ft
    3840x2160p @60Hz 12bit 4:2:0 Dolby Vision 5m/16ft
    3840x2160p @50Hz 10bit 4:2:2 HLG 5m/16ft
    4096x2160p @60Hz 8bit 4:4:4 5m/16ft
  • Supported Standards:
    • DCI | RGB | HDR10 | HDR10+ | Dolby Vision | HLG | BT.2020
  • Maximum Pixel Clock:
    • 600MHz

COMMUNICATION AND CONTROL

  • HDMI:
    • HDMI 2.0 | HDCP 2.2 | EDID | CEC (display power trigger)
  • RS-232:
    • 1x 3-pin Phoenix for API control
  • LAN:
    • 1x 8-pin RJ-45 for API control

POWER

  • Power Supply:
    • 100~240V AC 50/60Hz AC
  • Max Power Consumption:
    • 60W

ENVIRONMENTAL

  • Operating Temperature:
    • 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
  • StorageTemperature:
    • -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
  • Maximum BTU:
    • 205 BTU/hr

DIMENSIONS & WEIGHT

  • Rack Units/Wall Box:
    • 1U
  • Height:
    • 43.5mm/1.72in
  • Width:
    • 440mm/17.33in
  • Depth:
    • 300mm/11.82in
  • Weight:
    • 3.66kg/8.07lbs

REGULATORY

  • Safety and Emission:
    • CE | FCC | RoHS | RCM | EAC
