210 Series 48 Port POE Switch AN-210-SW-F-48-POE Araknis

Product Code: AR-AN-210SW-F48P

Brand
Araknis
RRP $2,939.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Araknis
Product type Network switches
  • Details
  • Downloads
  • Where to Buy
  • Ordering

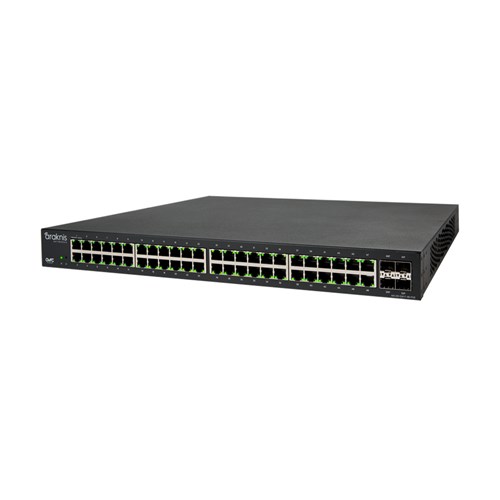

Araknis Networks® 210 Series Websmart Gigabit Switch with Partial PoE+ and Front Ports

For installs that require PoE on a budget, opt for the Araknis Networks® 210-series switch. With it, you get a sizable power budget and full PoE capability on all ports, up to 30W. You can also take advantage of Websmart, which allows you to control PoE and IP settings via OvrC. When it comes to operation, this switch has it all, including plug and play capability, multiple mounting options, and a sleek, 1U design.


  • Mounting Notice - The 8-port model of this switch ships with left-justified rack ears. Visit the corresponding product page to order center-justified ears.
  • Firmware Update - This product has new firmware available. Please update your switch during installation.

Features

  • Websmart
  • Gigabit
  • Partial PoE/PoE+
  • Multi-Speed Fans
  • Multi-Mounting
  • Metal Housing
  • OvrC Enabled
  • Control4 Driver

Temperature Controlled

Now it’s easier than ever to handle the heat. A smarter design features a honeycomb venting solution and temperature sensor that drives the speed of the fans, allowing for efficient and discreet temperature control. For a completely silent solution, opt for the 8-port switch, which incorporates a fanless design.

SFP Uplinks

Use this switch’s SFP ports to provide RJ45 uplinks to other devices, and/or fiber uplinks to extend the network over long distances while getting a stronger signal. Featuring a dedicated fabric, they don’t share a backplane with any other ports on the switch, which means you get a full 1 Gbps and don’t have to sacrifice a dedicated PoE port to use them (no combo ports here!).

Improved GUI

A clear and concise GUI with simple VLAN and Link Aggregation setup makes install work a breeze. And because the GUI is consistent with our routers and WAPs, you can avoid the learning curve altogether.

Control4 Driver for More Customization

Experience greater control and customization with the ability to reboot or power on/off the PoE ports or schedule power cycling for PoE-connected devices. With Control4 “Custom Experience” buttons, your clients control the ability to turn off Wi-Fi and power down IP cameras from the Control4 touch screen or mobile app. To access the driver, search for “Araknis” or “MS” in Composer.

Rift LED & Mechanical Design

Both stylish and informative, these green LED lights indicate power status, port speed (10/100 Mbps - 1 Gbps), and link status. Plus, a redesigned faceplate is constructed with industrial materials and a glossy finish, making for a clean design you’ll love to show off.

Multi-Mounting

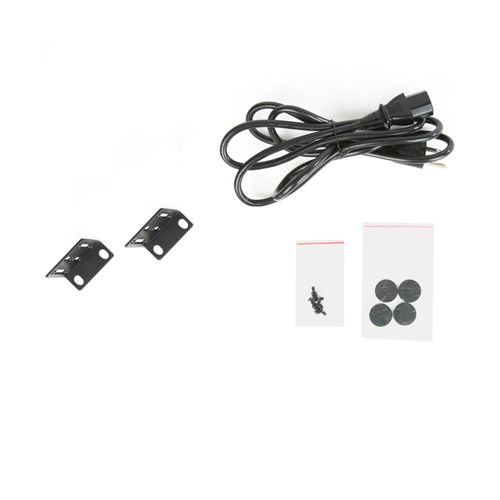

Mounting has never been easier. Due to its 1U design and available accessories, it can easily be mounted in a rack, wall, or anywhere in between. Included rack ears make for a sleek, left-justified design, while optional center-mount rack ears offer a more traditional look.

Plug-n-Play

Stop spending time on network configuration. Simply plug this switch in, and you’re ready to go. It’s as easy as that.

Partial PoE

When you have a job that needs partial PoE, this switch has you covered. All ports have full PoE capability up to 30W, with a more economical power budget, giving you an efficient switch at a modest price.

1Gbps Throughput

With a powerful 1Gbps on all ports simultaneously, this switch can support the backbone of an install or simply act as a desktop add.

Websmart

With Websmart, you receive the benefit of PoE with similar management capabilities of our flagship 310-series switches, making for the perfect balance of manageability and simplicity.



Specifications

Rack Spacing
1U
RJ-45 1000BASE-T Ports
48
SFP Uplink 1000BASE-X Ports
4
RJ45 Auto Negotiation
Yes
RJ45 Auto Sensing
Yes
Auto MDI/MDI-X
Yes
POE Ports
48
Flash Memory
32MB
SDRAM Memory
256MB
Packet Buffer
1.5MB
MAC Table Size
16K
Switching Capacity
104Gbps
Forwarding Rate
77.4Mpps
PoE Features
802.3af/at
Auto PD Classification
Max Power Output per Port: 30W
Max Simultaneous Power per Port: 8W
PoE Power Budget
375W
Power Features
Enable/Disable per port
Priority Setting per port
Overloading Protection per port
PoE/1Gbps LED Toggle Setting
PoE Power Withdraw Reading per Port
Power level setting per port
L2 Features
Head-of-line blocking (HOL)
Energy Efficient Ethernet (IEEE 802.3az)
Flow Control
802.3x, Back pressure
Forwarding Mode
Store-and-forward
Spanning Tree
802.1D (STP)
802.1w (RSTP)
802.1s (MSTP)
VLAN Features
802.1Q
VLAN Group
Port-based VLANs
QinQ
Protocol-based VLANs
Voice VLAN
Link Aggregation Features
Static, 802.3ad LACP
Max Ports per group: 8
Max group: 8
Multicast Features
IGMP Snooping v1/v2/v3; MLD Snooping v1/v2
IGMP Querier
IGMP Immediate Leave
Storm Control
Broadcast/Unknown Multi-cast/Unknown Unicast
Jumbo Frame Support
9k
QoS Features
Priority Queues: 8 queues per port
Rate Limiting - Ingress: 1 Kbps/1 pps
Rate Limiting - Egress: 1 Kbps/1 pps
Scheduling: WRR, Strict Priority
CoS: 802.1p, IP ToS Precendence, IP DSCP
DiffServ (RFC2474)
Security Features
Port Security (MAC-based)
802.1x-PNAC (Port-based)
IP Source Guard
RADIUS
HTTPS and SSL
SSH v2.0
MAC Filter
Management Protocols
CLI, Web, Telnet, Cloud-based Managed via OvrC
Management Access Filtering
SNMP/Web/Telnet
SNMP
v1,2c,v3
DHCP
Client
Event Log
local flash
remote server
Management Features
FW Upgrade: TFTP, HTTP
Port Mirroring: One to One, Many to One
sFlow
SNTP
Remote Ping
LLDP (IEEE802.1ab)
Cable Diagnostics
UPnP Client
RMON (1,2,3 and 9 groups)
Dual FW Image
Dimensions (W x H x D)
17.32" x 1.73" x 16.22"
Line Voltage
100-240V AC, 50/60 Hz
Power Consumption
Max: 481.40W
Device: 48.90W
BTU/h (max): 141.05
Operating Temperature
32°F-122°F
Operating Humidity
10-90%
Weight
13.4 lb
Fan Noise
44.8 dBA (≥ 35°C @ 100%)
40.5 dBA (30-34°C @ 75%)
32.4 dBA (<29°C @ 50%)
