2-Way Full Range 6 Power TA61-A Renkus Heinz

Product Code: RH-TA61-A

Brand
Renkus Heinz
RRP $6,700.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Renkus Heinz
Series T Series
Size 6.5"
Speaker Type Stage / Stadium
  • Details
  • Downloads
  • Where to Buy
  • Ordering

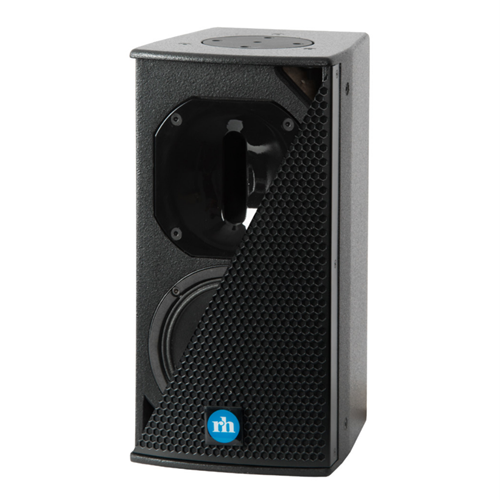

TA61-A

Compact 6.5-inch woofer + 1-inch titanium HF driver
Sound that makes performances and audiences truly come alive doesn't come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

The T61 features a 6.5-inch heavy-duty woofer and a 1-inch Extended Range Titanium HF Driver.

TA61 Powered Loudspeakers
Equipped with SA625 Series Amplification


Key Features

  • High Volume Output, Small Enclosures
    100 Hz to 18 kHz ±3 dB: Outstanding, full-range performance in an extremely compact, space-saving design.
  • Exclusive 150° by 60° Complex Conic Design
    Provides constant beamwidth/directivity without the problems of conventional rectangular horns.
  • 1-inch Extended Range Titanium HF Driver
    Provides smooth, low distortion high frequency performance to 18 kHz and beyond.
  • Heavy-Duty 6.5-inch Woofer
    Easily handles 120 Watts of program power.

Applications

Virtually any application where size is a critical issue and outstanding sonic performance is required.

Permanent Installations

  • Ideal for fills, delays, distributed and playback systems
  • Churches, schools, sports venues, board rooms, malls, transportation venues, retail environments

Portable Applications

  • Ideal solution for portable, compact, full-range sound reinforcement requirements.
  • Performing artists, rental A/V, schools, churches, etc.

Technical Information

  • Sensitivity: All Models 94 dB (1W/1m)
  • Max SPL: 120 dB peak
  • Dispersion: 150° H x 60° V Rotatable Horn
  • Freq. Response: ± 3 dB, 100 Hz to 18 kHz
  • HF Driver: 1" Titanium driver, model SSD1445-16; 20 W AES
  • LF Driver:  6.5" woofer, model SSL6.5-18; 1" VC; 100 W AES @ 16 Ohms
  • Power Handling: See SA625 Amplifier
  • Connectors: See SA625 Amplifier
  • Enclosure: 15mm Lite Ply, perforated metal grille
  • Hardware:
    • 12-point Universal Mounting Hardware (Metric M6 threads)
    • M10 U-bracket attachment points
  • Finish: Black or White Paint, standard. Custom Color, Weather Resistant optional.
  • Dimensions: 200 mm H X 406 mm W X 238 mm D
  • Weight: 19Lbs / 8.6 kg Net


SA625 Amplifier Specifications

  • Audio Connections: 2 x XLR-3, In & Loop-out, Analog
  • Maximum Input Level: +22 dBu, Analog
  • User DSP: Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
  • Latency: 6.25 ms
  • Power Output: LF= 250 watts, @ 16 ohms / HF = 125 watts @ 16 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
  • Mains Voltage: 100-240 volts, 50/60 Hz auto-switching
  • Power Consumption: Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
  • Power Connector: Neutrik powerCON TRUE-1
  • Temprature Limits: Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
