2-Way 12 Power+Dsp+Dante TA121-RD Renkus Heinz

Product Code: RH-TA121-RD

Brand
Renkus Heinz
RRP $11,200.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Renkus Heinz
Series T Series
Size 12"
Speaker Type Stage / Stadium
  • Details
  • Downloads
  • Where to Buy
  • Ordering

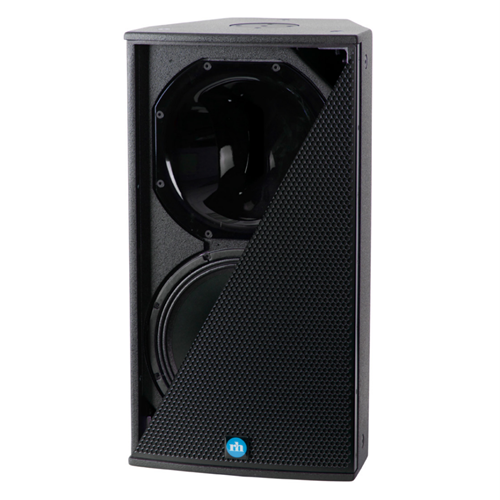

TA121-RD

12-Inch Heavy Duty Woofer + 2-inch Titanium HF Driver
Sound that makes performances and audiences truly come alive doesn't come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

The T121 features a 12-inch heavy duty woofer and a 2-inch titanium HF driver.

TA121 Powered Loudspeakers
Equipped with SA1250 Series Amplification

TX121 Non-Powered Loudspeakers
For use with external amplification


Key Features

  • Compact Design
    Outstanding, full-range ± 3 dB, 60 Hz to 18 kHz performance in a compact, space-saving design.
  • Exclusive 90° x 40° Complex Conic Design
    Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.
  • 2-inch Extended Range Titanium HF Driver
    Provides smooth, low distortion high frequency performance to 18 kHz and beyond.
  • Heavy-Duty 12-inch Woofer
    Easily handles 600 Watts of program power.
  • Built-in Crossover
    Includes EQ and high frequency protection; in the T121 eliminates need for a separate electronic crossover and bi-amplification.

If you need an outstanding high-power 12-inch 2-way system, order the T121.

Applications

  • Virtually any application where size is a critical issue and outstanding sonic performance is required.

Permanent Installations

  • Ideal compact main PA for music and speech or as part of a high output distributed system in larger venues.
  • Houses of worship, schools, performing art centers, night clubs, stadiums and arenas.

Portable Applications

  • Ideal main PA for unobtrusive live music and speech reinforcement or as fill coverage in larger systems.
  • Rental A/V, DJ systems, churches, schools, etc.

Technical Information

  • Sensitivity: All Models 97 dB (1W/1m)
  • Max SPL: 127 dB, Peak
  • Dispersion: 60° H x 40° V or 90° H x 40° V Rotatable
  • Freq. Response: ± 3 dB, 60 Hz to 20 kHz
  • HF Driver: SSD1747-8 driver, 60 W AES @ 8 ohms
  • LF Driver: SSL12-26, 350 W AES @ 8 ohms
  • Power Handling: See SA1250 Amplifier
  • Connectors: See SA1250 Amplifier
  • Enclosure: 19 mm Lite Ply, perforated metal grille
  • Hardware:
    • 12-point Universal Mounting Hardware (Metric M10 threads)
    • M10 U-bracket attachment points
  • Finish: Black or White Paint, standard. Custom Color, Weather Resistant, optional.
  • Dimensions: 686 x mm H x 365 mm W x 362 mm D
  • Weight: 45 lbs / 20.4 kg, Net

SA1250 Amplifier Specifications

  • Audio Connections:
    • 2 x XLR-3, In & Loop-out, Analog and AES
    • 2 x RJ45 Dante Primary & Secondary Ethernet
  • Network Connections: 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
  • Maximum Input Level: +22 dBu, Analog, 0 dBFS digital
  • User DSP: Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
  • Software: RHAON II
  • Latency: 6.25 ms + Dante transport latency
  • Power Output: LF= 1000 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
  • Mains Voltage: 100-240 volts, 50/60 Hz auto-switching
  • Power Consumption: Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
  • Power Connector: Neutrik powerCON TRUE-1
  • Temprature Limits: Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
