Products

Cables and Connectors

1 metre USB-C to USB-C superspeed USB 20Gbps 4K60 Alt-Mode,100W PD

Product Code: WY-EXPCABUSBC1M

Brand
Wyrestorm
RRP $59.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands WyreStorm
Terminated Cable Type USB
  • Details
  • Downloads
  • Where to Buy
  • Ordering

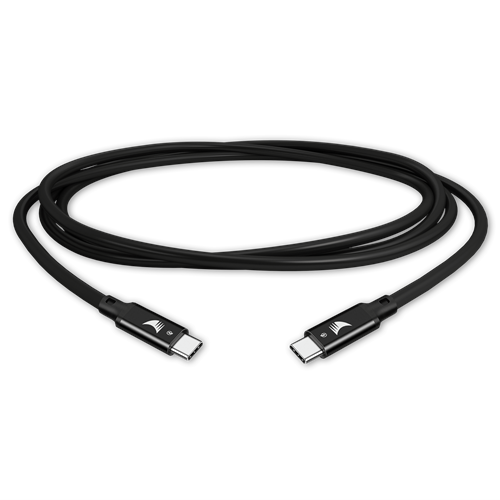

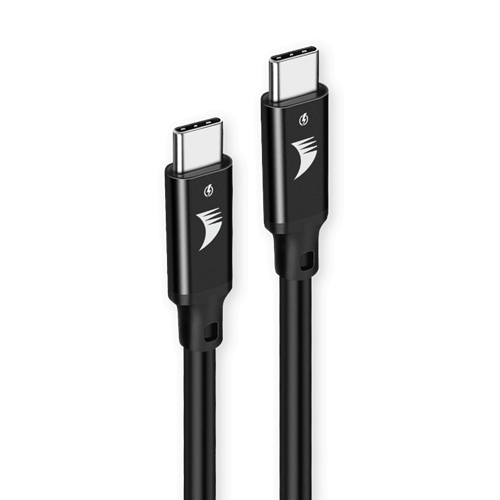

USB 3.2 USB-C to USB-C Cable

The EXP-CAB-USBC-xM are a quality USB-C to C cable capable of transmitting A/V and data over standard copper. USB data is rated up to Superspeed 20Gbps for fast file transfers or connecting USB 3.0 equipped devices such as conference cameras. The EXP-CAB-USBC-xM also supports Alt-Mode which allows 4K60 video to be transmitted from USB-C laptops or mobile devices. Pair this cable with a WyreStorm Apollo or presentation switcher/IDB in-desk-box to take advantage of the 100W power delivery so you can keep your device charged while you present.

SUPERSPEED
With a 16-lane core that’s rated for the USB 3.2 Gen2x2 Superspeed specification, transfer data with blazing speeds of up to 20Gbps. Perfect for large file transfers or connecting high-speed USB devices such as 4K cameras.

ALT-MODE
Alt-Mode adds A/V capability in addition to the USB data communication. Connect USB-C equipped laptops or mobile devices to send high resolution 4K video to a connected display or WyreStorm presentation switcher.

POWER DELIVERY
Capable of passing up to 100 watts to charge your personal device. A perfect companion to USB-C equipped WyreStorm solutions such as our UC Apollo products that integrate native PD.

DURABLE CONSTRUCTION
Our USB-C cable heads are made of a durable cast aluminum and the cable is protected with a thick PVC jacket to withstand kinks, pulls and daily abuse.

Technical Specifications


AUDIO & VIDEO

  • Video Resolution (Max):
    • 1920x1080p @ 240Hz
    • 4096x2160p @60Hz 4:4:4 10bit
    • 4096x2160p @60Hz RGB
  • Audio Formats: 2ch PCM
  • Supported Standards: RGB | USB Superspeed | USB Alt-Mode
COMMUNICATION & CONTROL
  • USB: USB 3.2 Gen 2×2 | Superspeed 20Gbps
POWER
  • Power Supply: 20V 5A (100w)
ENVIRONMENTAL
  • Operating Temperature: 14°F ~ 158°F (-10°C ~ 70°C) | 0% ~ 85%, non-condensing
  • Storage Temperature: -40°F ~ 185°F (-40°C ~ 85°C) | 0% ~ 85%, non-condensing
DIMENSIONS & WEIGHT
  • Length: (1M/3FT)/(2M/6FT)
  • Weight: 1M (.043kg/.09lbs) 2M (.066kg/.15lbs)
REGULATORY
  • Safety and Emission: CE | FCC | RoHS | RCM | EAC
